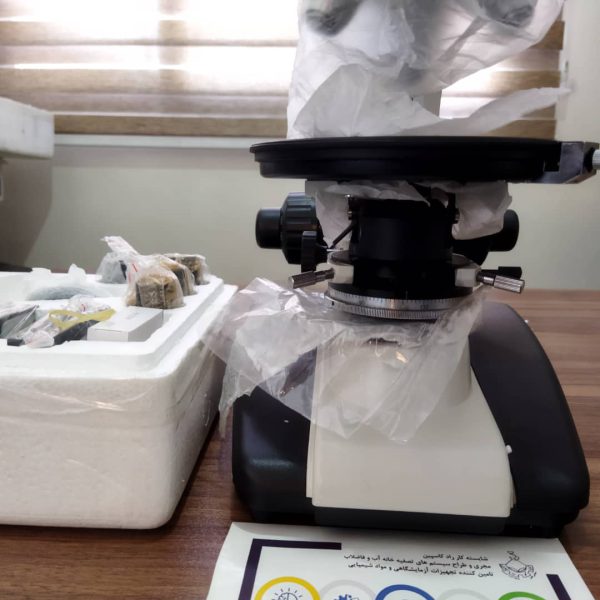

میکروسکوپ پلاریزان سه چشمی PM-003C NINGBO

ساخت کمپانی نینگبو ( کینگستیک ) – NINGBO ( KingStic )
تولید کشور چین
مدل PM-003C
سه چشمی پلاریزان

دارای روغن مخصوص
مدل چشمی WF10X/18
لنز های موجود در جعبه : Strainfree achromatic objective 4X,10X,25X(S),40X(S),63X(S)

کاتالوگ فنی کمپانی Kingstic PM-003-C

Viewing head Trinocular head inclined at 30º ,360º rotatable
Eyepiece Eyepiece WF10X/18
Objective Strainfree achromatic objective 4X,10X,25X(S),40X(S),63X(S)

Nosepiece Toward quadruple nosepiece
Analyzer Rotatable analyzer with gradution 0 -90º
Bertrand lens Bertrand lens,sliding in / out of optical path
Optical compensator λ Slip(first class red)
1/4λ Slip

Quartz wedge
Revolving round stage Diameter Φ 160mm,360º rotatable and graduated in 1º Increments,
Minimum resolution 6 ,when using vernier scale,center adjustable
Condenser ABBE condenser with lris diaphragm filter
Focusing Coarxial coarse and fine adjustment,range 28mm,fine division 0.002
Polarizer Sliding in/out of optical path,located on the top of collector
Illumination Halogen tungsten bulb 85V-230V/12V30W adjustable brightness
