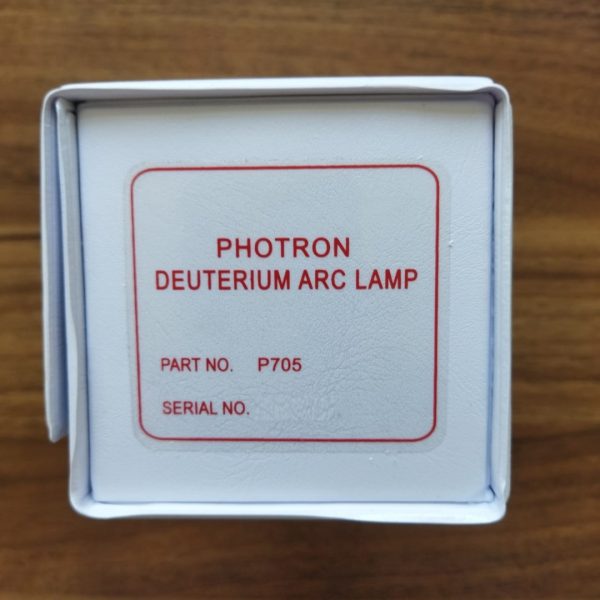

لامپ دوتریوم فوترون Photron P705

ساخت کمپانی فوترون Photron
تولید کشور استرالیا
مناسب برای دستگاه های HPLC (اچ پی ال سی – کروماتوگرافی مایع ) از برندهای Aktec / Beckman / Biorad / Joyce Loebl / Kontron LDC / Varian / Waters / Saitron / Spectra Physics / Turner

لامپ های دوتریوم فوترون deuterium arc lamp

لامپ دوتریوم Deuterium
مدل p705
بسته بندی مناسب برای جابجایی

کاتالوگ فنی کمپانی Photron P705

Electrical
Filament / Heater Voltage Start 2.5 – 3.0 VDC
Operating 1.5 – 2.0
Filament / Heater Current 4.5A Max
Discharge / Arc Voltage Strike @25°C >350 VDC
Operating 60 – 90 VDC
Discharge / Arc Current 10 -300mA
Leads Black Filament & Cathode
Red Anode
Terminals Spade Terminal
Optical
Window material UV Transmitting Borosilicate
Source aperture ø 1mm Diameter
Wavelength range 185nm – 400nm
Noise <1 x 10-4 Absorption units
Drift < 3 x 10-3 Absorption units
Operational Life
When radiant energy reaches 50% of the initial energy at 300mA(dc).

لامپ دوتریم فوترون photron deuterium lamp p705

Warranty:
Do not subject the lamp to mechanical shock.
Before using the lamp, ensure glass envelope is clean and free from dirt. Envelope may be gently wiped with either alcohol or acetone. Caution: the circumference of the glass envelope around the light box is very thin and should be handled with extreme care.
Care must be taken not to touch lamp body with bare hand, as it’s temperature reaches over 200°C during operation.
UV radiation is harmful to eyes. Suitable eye protection must be worn when observing light output.
Since this lamp operates at high voltages, extreme caution is require to prevent electrical shock.

کاتالوگ لامپ دوتریوم PHOTRON P705
