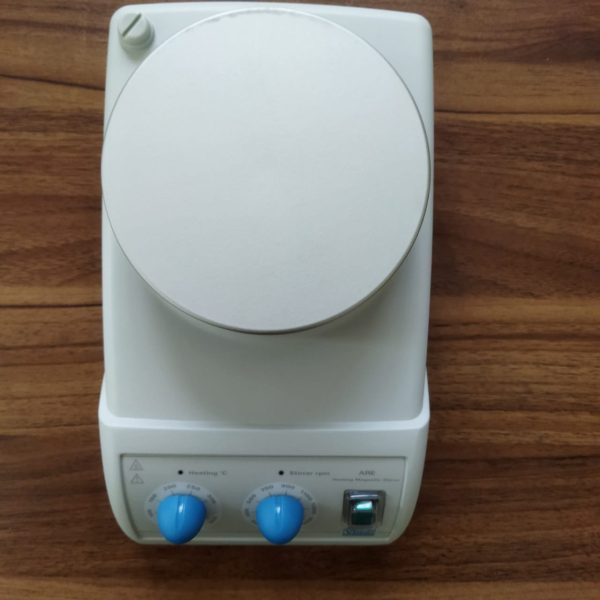

هیتر مگنت استیرر ولپ VELP ARE

ساخت کمپانی ولپ VELP
تولید کشور ایتالیا
مدل ARE
کیفیت عالی با قیمت مناسب
مناسب صنابع غذایی ، دارویی ، نفت و پتروشیمی

ضد آب و دارای استاندارد IP65
صفحه سرامیکی و دایره ای شکل با قطر خارجی 135 میلی متر ( 13.5 سانت )
قابلیت تنظیم دما تا 370 درجه سانتی گراد ( سلسیوس )
سرعت چرخش تا 1500 دور در دقیقه ( RPM )

کاتالوگ فنی کمپانی ولپ VELP ARE

The hot plate stirrer ARE offers an innovative low profile and attractive design for an outstanding comfort.
Also, the inclination of the front panel has been carefully studied to facilitate use.

The control panel is extremely intuitive.
By turning the left knob of the hot plate stirrer it is possible to adjust the temperature (up to 370 °C), whilst the right one controls the stirring speed (up to 1500 rpm).
Aluminum alloy top plate ensures a great temperature homogeneity and optimum heat transfer across the

TECHNICAL DATA

CONSTRUCTION MATERIAL:
epoxy painted aluminum structure
HEATING PLATE:
aluminum alloy coated with special protection
HEATING PLATE DIAMETER:
135 mm
PROTECTION RATING CEI EN 60529:
IP 42

POWER:
630 W
WEIGHT:
2.6 Kg (5.7 lb)
DIMENSIONS (WXHXD):
165x115x280 mm (6.5×4.5×11 in)
ELECTRONIC SPEED CONTROL:
up to 1500 rpm
TEMPERATURE REGULATION:
from room temp. to 370°C
STIRRING VOLUME (H2O):
up to 15 liters
STIRRING SYSTEM:
high-power driving magnet type ”PCM” operated by a mono-phase motor for continuous operation
COUNTER-REACTION:
constant speedentire surface.
