آون فن دار آزمایشگاهی Binder مدل FD 56

تولید کمپانی بیندر Binder
ساخت کشور آلمان
محفظه داخلی از جنس استیل 304

آون فور آزمایشگاهی Binder FD56

دارای دو سینی (قابلیت ارتقا به پنج سینی)
دارای پنج جایگاه سینی

کاتالوگ فنی کمپانی بیندر Binder FD56

Designation
FD056-230V¹

محفظه استیل آون فور بیندر Binder FD56

FD056UL-120V¹

Option model Standard Standard
Order number 9010-0303 9010-0304
Data
Serie FD FD
Performance Data Temperature
Heating-up time to 150 °C [min] 15 15
Recovery time after 30 seconds door open at 150 °C [min] 4 4
Temperature fluctuation at 150 °C [± K] 0.3 0.3
Temperature range +10 °C above ambient temperature to [°C] 300 300
Temperature variation at 150 °C [± K] 1.7 1.7
Air change data
Air change (approx.) at 100 °C [x/h] 80 80
Electrical data
Nominal power [kW] 1.1 1.2
Phase (Nominal voltage) 1~ 1~
Power frequency [Hz] 50/60 60
Rated Voltage [V] 230 120
Unit fuse [A] 6.3 12.5
Doors
Unit doors 1 1
Housing dimensions not incl. fittings and connections
Depth net [mm] 565 565
Height net [mm] 625 625
Width net [mm] 560 560
Internal Dimensions
Depth [mm] 345 345
Height [mm] 440 440
Width [mm] 400 400

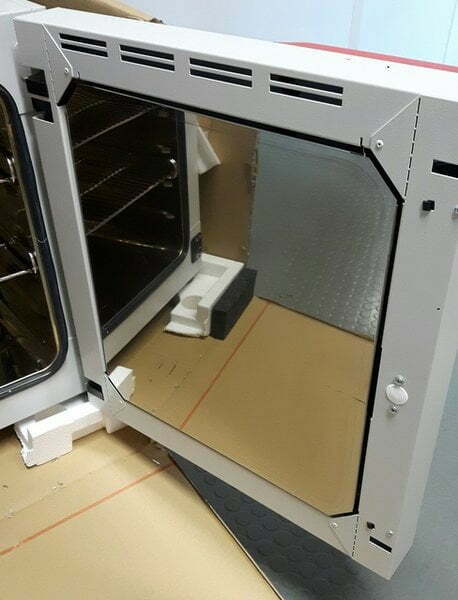

محفظه داخلی آون یا فور بیندر BINDER

Measures
Interior volume [L] 60 60
Load per rack [kg] 30 30
Net weight of the unit (empty) [kg] 41 41
Permitted load [kg] 70 70
Wall clearance back [mm] 160 160
Wall clearance sidewise [mm] 100 100
Environment-specific data
Energy consumption at 150 °C [Wh/h] 290 290
Sound-pressure level [dB(A)] 43 43
Fixtures
Number of shelves (std./max.) 2/4 2/4
All technical data is specified for unloaded units with standard equipment at an ambient temperature of +22 °C ±3 °C and a power supply voltage fluctuation of ±10 %. The temperature data is determined to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10 % of the height, width, and depth of the inner chamber. Technical data refers to 100 % fan speed. All indications are average values, typical for units produced in series. We reserve the right to change technical specifications at any time.
